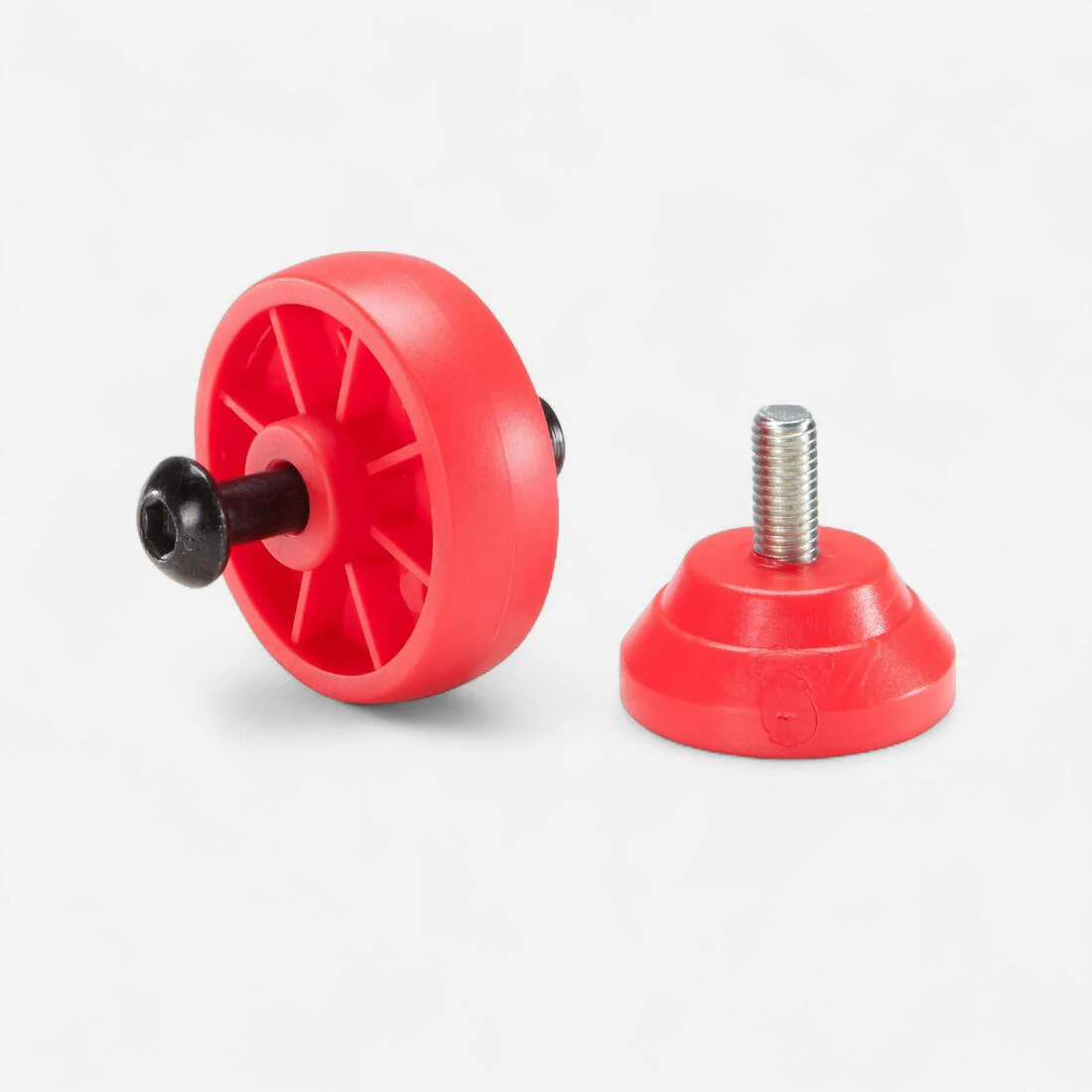

Leg Leveller + Wheel

Designed for replacing your treadmill's leg leveller or wheel.

Designed for

T540B (Reference 8550004) T520B (Reference 8550003)

Compatibility:

T540A / T540B / T540C (Reference 8550004) T520A / T520B / T900A / T900B / T900C / T900D (Reference 8550003)

Wheel dimensions:

T540A / T540B / T540C (Reference 8550004) A: Outer diameter: 57 mm B: Central hole diameter: 8.2 mm D: Central width: 36 mm C: Wheel width: 22 mm T520A / T520B / T900A / T900B / T900C / T900D (Reference 8550003) A: Outer diameter: 54.6 mm B: Central hole diameter: 8.2 mm D: Central width: 25.2 mm C: Wheel width: 16,5 mm

Leg leveller dimensions:

T540A / T540B / T540C (Reference 8550004) A: Pad outer diameter: 29 mm B: Pad height: 10.2 mm C: Screw diameter: 6.2 mm D: Screw height: 23.5mm T520A / T520B / T900A / T900B / T900C / T900D (Reference 8550003) A: Pad outer diameter: 40 mm B: Pad height: 18 mm C: Screw diameter: 7.8 mm D: Screw height: 17 mm

Gets your machine back in working order.

Repair

Easy to change.

Designed for replacing your treadmill's leg leveller or wheel.
